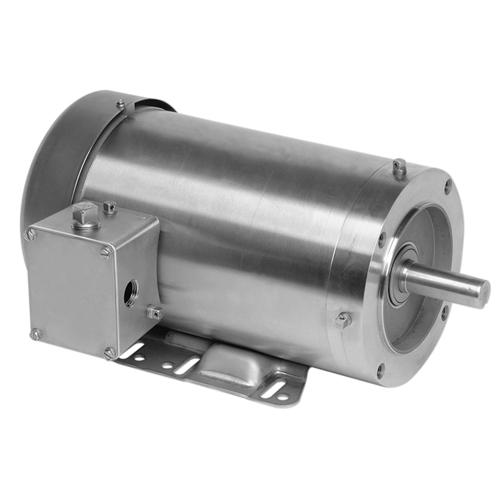

U.S. Motors WDS3P2ACR Three Phase Washdown Duty Motor - WDS3P2ACR

Sold out
$1,546.18

Out of stock in our warehouses. Please call us for factory stock.

Catalog#: WDS3P2ACR
Manufacturer: U.S. Motors

  • Amps: 8.3-7.6/3.8
  • Bearings: Ball
  • Efficiency: 89.5%
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 182TC
  • HP: 3
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model #: FB22
  • Maximum Ambient Temperature: 40° C
  • Mounting: Face
  • Number of Speeds: 1
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1765
  • Service Factor: 1.15
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 58 lbs.
