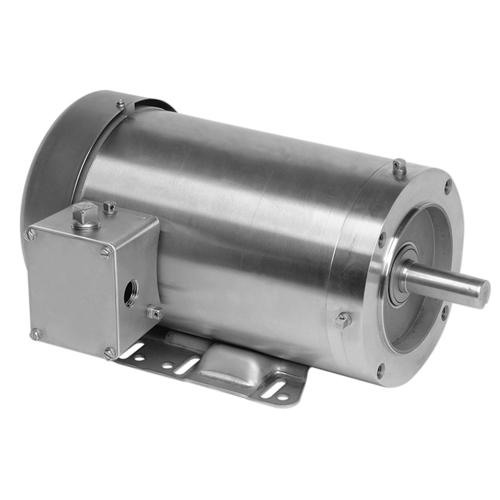

U.S. Motors WDS32P1ACR Three Phase Washdown Duty Motor - WDS32P1ACR
Sold out
$1,093.71
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: WDS32P1ACR
Manufacturer: U.S. Motors
Returns & Warranties
- Amps: 4.2-3.8/1.9
- Bearings: Ball
- Efficiency: 84%
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 145TC
- HP: 1-1/2
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: DY63
- Maximum Ambient Temperature: 40° C
- Mounting: Face
- Number of Speeds: 1
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3510
- Service Factor: 1.15
- Volts: 208
- Volts: 230
- Volts: 460
- Ship Weight: 42 lbs.
