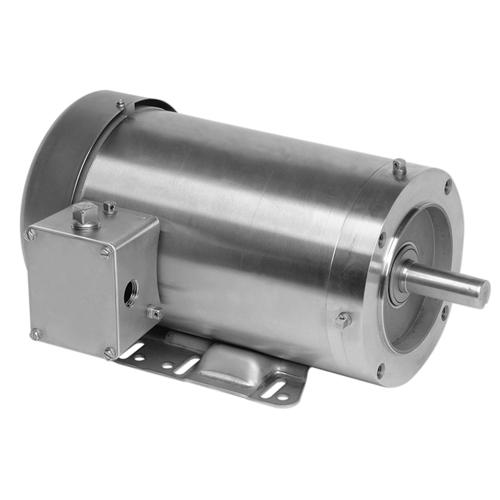

U.S. Motors WDS12S1ACR Three Phase Washdown Duty Motor - WDS12S1ACR
Sold out
$918.89
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: WDS12S1ACR
Manufacturer: U.S. Motors
Returns & Warranties
- Amps: 1.6-1.5/0.8
- Bearings: Ball
- Efficiency: 77%
- Enclosure Type: TENV (Totally Enclosed Non Ventilated)
- Frame: 56C
- HP: 1/2
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: DY59
- Maximum Ambient Temperature: 40° C
- Mounting: Face
- Number of Speeds: 1
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3525
- Service Factor: 1.15
- Volts: 208
- Volts: 230
- Volts: 460
- Ship Weight: 34 lbs.
