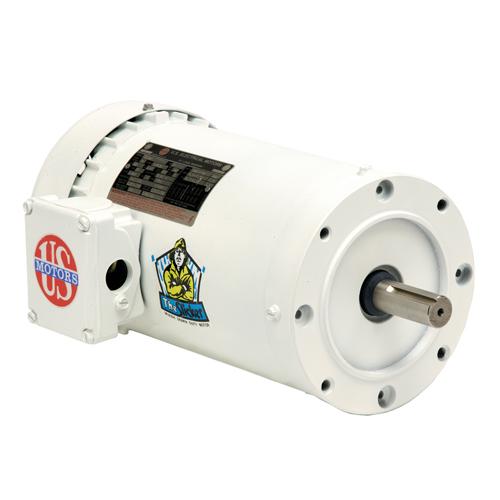

U.S. Motors WD3E2A14CR Three Phase Washdown Duty Motor - WD3E2A14CR
Sold out
$753.56
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: WD3E2A14CR
Manufacturer: U.S. Motors
Returns & Warranties
- Amps: 9.5-9.2/4.6
- Bearings: Ball
- Efficiency: 87.5%
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 145TC
- HP: 3
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: P063EME5041015B
- Maximum Ambient Temperature: 40° C
- Mounting: Face
- Number of Speeds: 1
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1725
- Service Factor: 1.00
- Volts: 208
- Volts: 230
- Volts: 460
- Ship Weight: 39 lbs.
