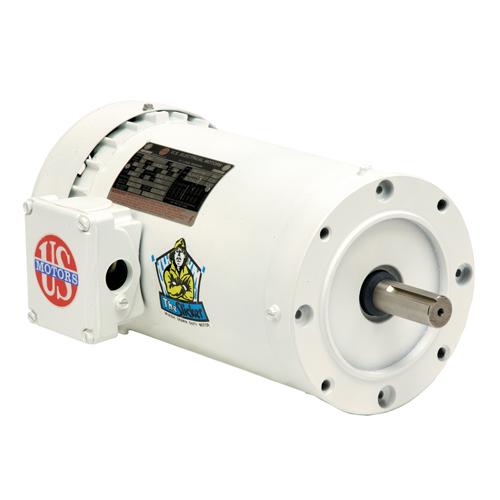

U.S. Motors WD32P1ACR Three Phase Washdown Duty Motor - WD32P1ACR

Sold out
$483.59

Out of stock in our warehouses. Please call us for factory stock.

Catalog#: WD32P1ACR
Manufacturer: U.S. Motors

  • Amps: 4.3-4.1/2.1
  • Bearings: Ball
  • Efficiency: 84%
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Frame: 56C
  • HP: 1-1/2
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model #: P063GBZ4459015B
  • Maximum Ambient Temperature: 40° C
  • Mounting: Face
  • Number of Speeds: 1
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 3450
  • Service Factor: 1.15
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 32 lbs.
