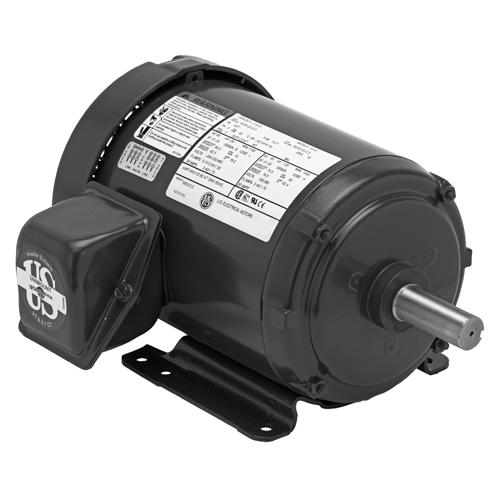

U.S. Motors T1P2AHZ Three Phase Premium Efficient General Purpose Motor - T1P2AHZ
$307.70
Catalog#: T1P2AHZ
Manufacturer: U.S. Motors
Returns & Warranties
- Amps: 3.3-3.2/1.5
- Bearings: Ball
- Efficiency: 85.5%
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 56HZ
- HP: 1
- Hz: 60
- Insulation Class: B
- Manufacturer Model #: P063GJK1505015B
- Maximum Ambient Temperature: 40° C
- Mounting: Base
- Number of Speeds: 1
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1725
- Service Factor: 1.25
- Volts: 208
- Volts: 230
- Volts: 460
- Ship Weight: 36 lbs.
