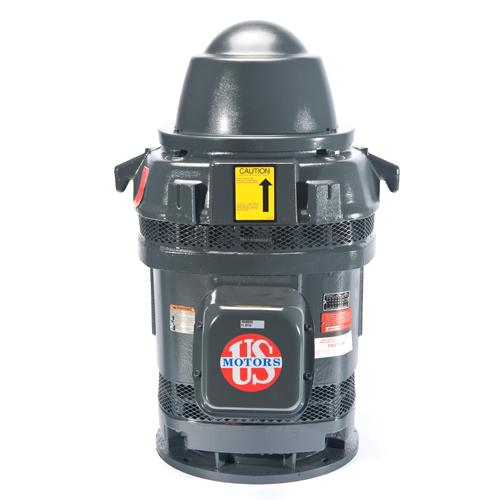

U.S. Motors HO150P2RLG Three Phase High Thrust Vertical Holloshaft Motor - HO150P2RLG
Sold out
$18,499.45
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: HO150P2RLG
Manufacturer: U.S. Motors
Returns & Warranties
- Amps: 349/202-174
- Bearings: Ball
- Efficiency: 95.4%
- Enclosure Type: WPI (Weather Protected Type 1)
- Frame: 444TP
- HP: 150
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: FN84
- Maximum Ambient Temperature: 50° C
- Mounting Orientation: Vertical
- Number of Speeds: 1
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1780
- Service Factor: 1.15
- Volts: 220
- Volts: 380
- Volts: 440
- Ship Weight: 1500 lbs.
