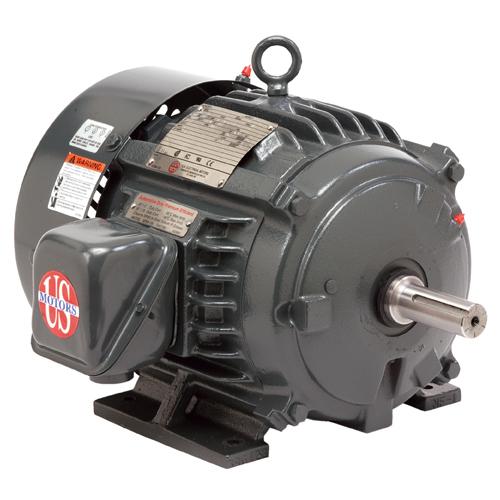

U.S. Motors H7T2BC Three Phase 20:1 Speed Range Constant Torque Inverter Duty Motor - H7T2BC

Sold out
$1,017.85

Out of stock in our warehouses. Please call for factory stock.

Catalog#: H7T2BC
Manufacturer: U.S. Motors

  • Amps: 21.1/10.5
  • Bearings: Ball
  • Efficiency: 91.7%
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 213TC
  • HP: 7-1/2
  • Hz: 60
  • Insulation Class: H
  • Manufacturer Model #: FG04
  • Maximum Ambient Temperature: 40° C
  • Mounting: Base/Face
  • Number of Speeds: 1
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1780
  • Service Factor: 1.15
  • Volts: 230
  • Volts: 460
  • Ship Weight: 160 lbs.
