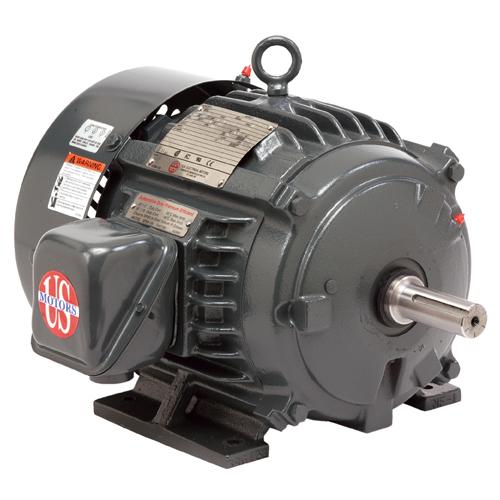

U.S. Motors H100T2B Three Phase 20:1 Speed Range Constant Torque Inverter Duty Motor - H100T2B

Sold out
$9,628.34

Out of stock in our warehouses. Please call for factory stock.

Catalog#: H100T2B
Manufacturer: U.S. Motors

  • Amps: 225/113
  • Bearings: Ball
  • Efficiency: 95.4%
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 405T
  • HP: 100
  • Hz: 60
  • Insulation Class: H
  • Manufacturer Model #: FG17
  • Maximum Ambient Temperature: 40° C
  • Mounting: Base
  • Number of Speeds: 1
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1780
  • Service Factor: 1.00
  • Volts: 230
  • Volts: 460
  • Ship Weight: 1180 lbs.
