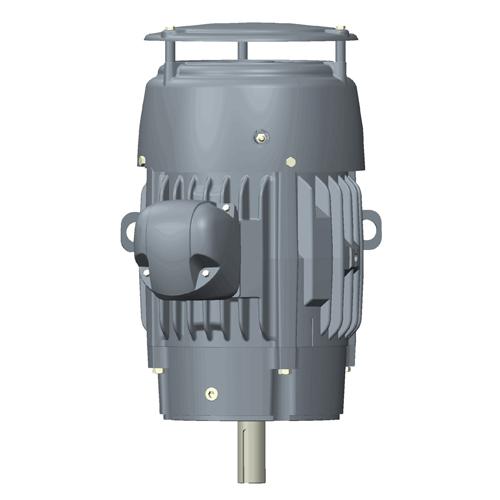

U.S. Motors C5P1DCR Three Phase Premium Efficient General Purpose Motor - C5P1DCR

Sold out
$1,035.22

Out of stock in our warehouses. Please call for factory stock.

Catalog#: C5P1DCR
Manufacturer: U.S. Motors

  • Amps: 13.4-12.2/6.1
  • Bearings: Ball
  • Efficiency: 88.5%
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 184TC
  • HP: 5
  • Hz: 50/60
  • Insulation Class: F
  • Manufacturer Model #: DW72
  • Maximum Ambient Temperature: 40° C
  • Mounting: Face
  • Number of Speeds: 1
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 3520
  • Service Factor: 1.15
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 110 lbs.
