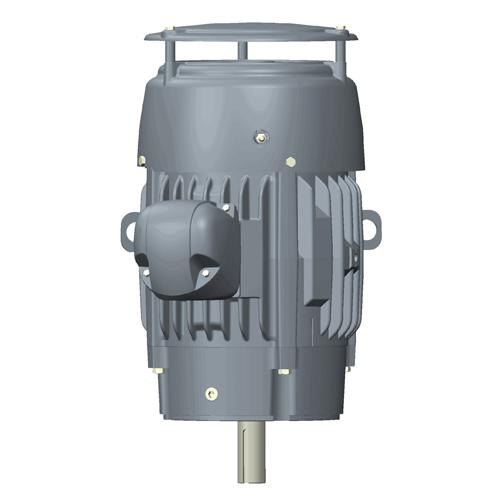

U.S. Motors C3P1DCR Three Phase Premium Efficient General Purpose Motor - C3P1DCR

Sold out
$865.50

Out of stock in our warehouses. Please call for factory stock.

Catalog#: C3P1DCR
Manufacturer: U.S. Motors

  • Amps: 8.4-7.8/3.9
  • Bearings: Ball
  • Efficiency: 87.5%
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 182TC
  • HP: 3
  • Hz: 50/60
  • Insulation Class: F
  • Manufacturer Model #: DW70
  • Maximum Ambient Temperature: 40° C
  • Mounting: Face
  • Number of Speeds: 1
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 3540
  • Service Factor: 1.15
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 100 lbs.
