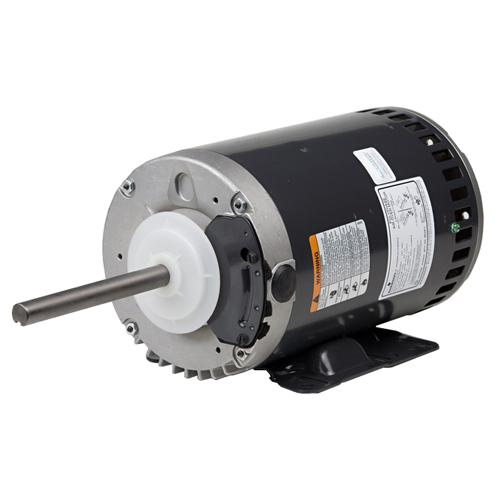

U.S. Motors 1260 Three Phase Commercial Condenser Fan Motor - 1260

Sold out
$360.44

Out of stock in our warehouses. Please call us for factory stock.

Catalog#: 1260
Manufacturer: U.S. Motors

  • Amps: 3.2-3.1/1.6
  • Bearings: Ball
  • Efficiency: 60%
  • Enclosure Type: OAO (Open Air Over)
  • Frame: 56
  • HP: 1/2
  • Hz: 50/60
  • Insulation Class: B
  • Manufacturer Model #: P063ELW5034015B
  • Maximum Ambient Temperature: 60° C
  • Mounting Orientation: Vertical Shaft Up
  • Mounting: Band
  • Number of Speeds: 1
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 575
  • Service Factor: 1.00
  • Thermal Protection: Automatic
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 21 lbs.
