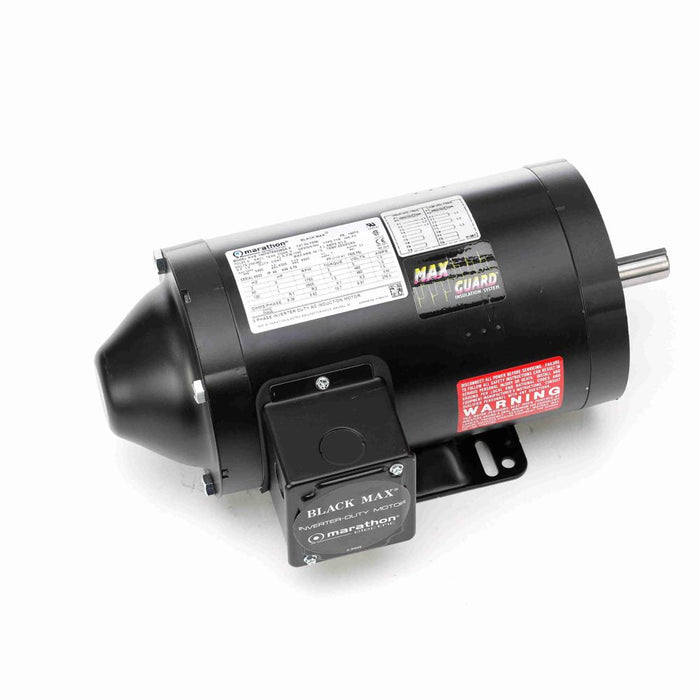

Marathon Y536 Inverter Duty Motor - Y536

$533.23

Catalog#: Y536
Manufacturer: Marathon

  • Amps: 3/1.5
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.84
  • Enclosure Material: Steel
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Frame: 143TC
  • HP: 1
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model #: 143THTR5326
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 8.56"
  • Mounting Orientation: Horizontal
  • Mounting: Face/Base
  • Number of Speeds: 1
  • Overall Length: 15.04"
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1750
  • Service Factor: 1
  • Shaft Diameter: 7/8"
  • Shaft Length: 2.12"
  • Volts: 230
  • Volts: 460
  • Ship Weight: 48 lbs.
