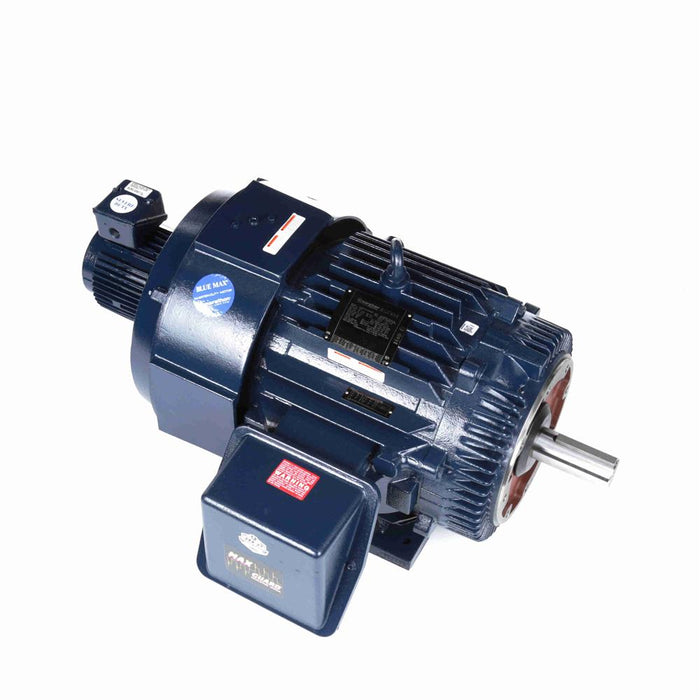

Marathon Y515 Inverter Duty Motor - Y515
Sold out
$10,039.32
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: Y515
Manufacturer: Marathon
Returns & Warranties
- Amps: 147/73.5
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.924
- Enclosure Material: Iron
- Enclosure Type: TEBC (Totally Enclosed Blower Cooled)
- Frame: 364TC
- HP: 60
- Hz: 60
- Insulation Class: H
- Manufacturer Model #: 364THFS8046
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 13.5"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 42.67"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1780
- Service Factor: 1
- Shaft Diameter: 2-3/8"
- Shaft Length: 5.62"
- Volts: 230
- Volts: 460
- Ship Weight: 1062 lbs.
