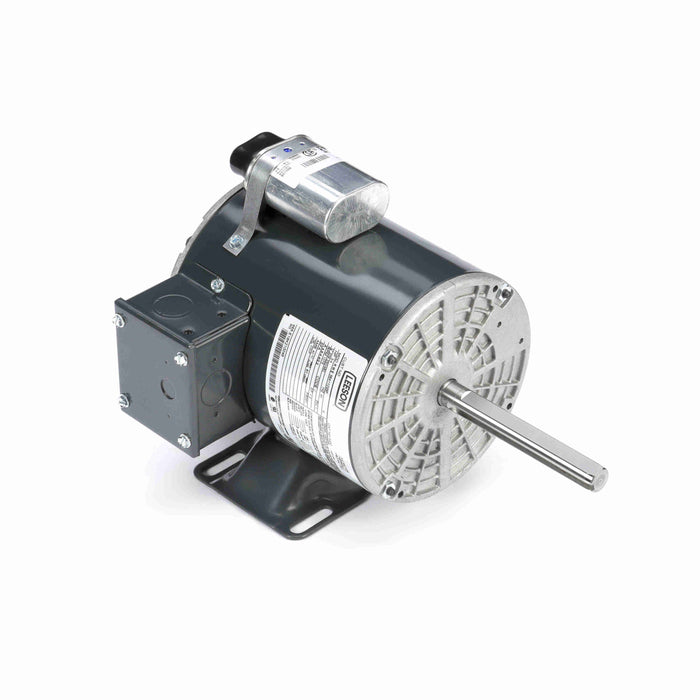

Marathon X432 Condenser Fan/Heat Pump Motor - X432

$390.95

Catalog#: X432
Manufacturer: Marathon

  • Amps: 4.6-4.4/2.2
  • Bearings: Ball
  • Capacitor: Included
  • Duty Cycle: Continuous
  • Efficiency: 0.673
  • Enclosure Material: Steel
  • Enclosure Type: OAO (Open Air Over)
  • Frame: 56Y
  • HP: 3/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model #: 056A11O29
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 6"
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 11.88"
  • Phase: 1
  • Product Type: PSC (Permanent Split Capacitor)
  • Rotation: Reversible
  • RPM: 1075
  • Service Factor: 1
  • Shaft Diameter: 5/8"
  • Shaft Length: 4.5"
  • Thermal Protection: Automatic
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 22 lbs.
