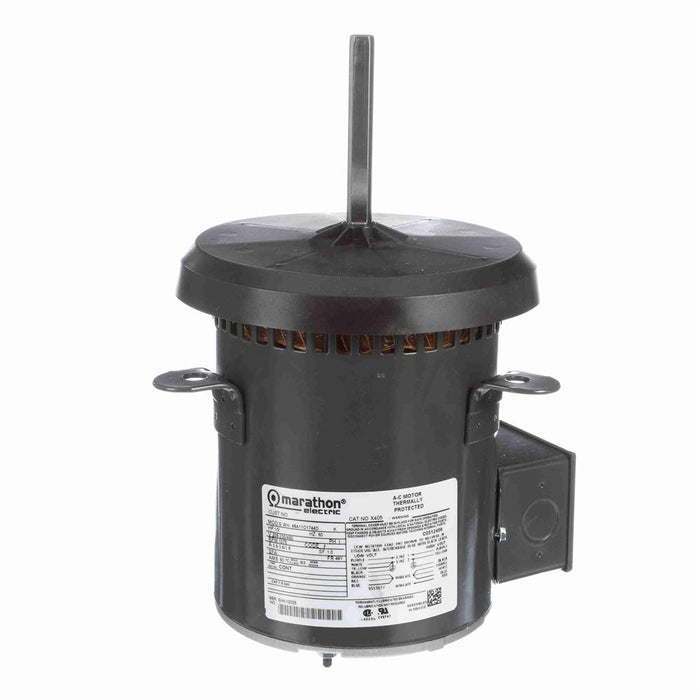

Marathon X405 5-5/8" Diameter Carrier OEM Replacement Blower Motor - X405

$279.26

Catalog#: X405
Manufacturer: Marathon

  • Amps: 3.6-3.6/1.8
  • Bearings: Ball
  • Capacitor: 7.5MFD/440VAC Required
  • Duty Cycle: Continuous
  • Efficiency: 0.657
  • Enclosure Material: Steel
  • Enclosure Type: OAO (Open Air Over)
  • Frame: 48Y
  • HP: 1/2
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model #: 048A11O1744
  • Maximum Ambient Temperature: 60° C
  • Motor Diameter: 5-5/8"
  • Motor Shell Length: 6.38"
  • Mounting Orientation: Horizontal/Vertical
  • Mounting: Bracket
  • Number of Speeds: 1
  • Overall Length: 11.82"
  • Phase: 1
  • Product Type: PSC (Permanent Split Capacitor)
  • Rotation: Reversible
  • RPM: 1075
  • Service Factor: 1
  • Shaft Diameter: 1/2"
  • Shaft Length: 4.06"
  • Thermal Protection: Automatic
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 25 lbs.
