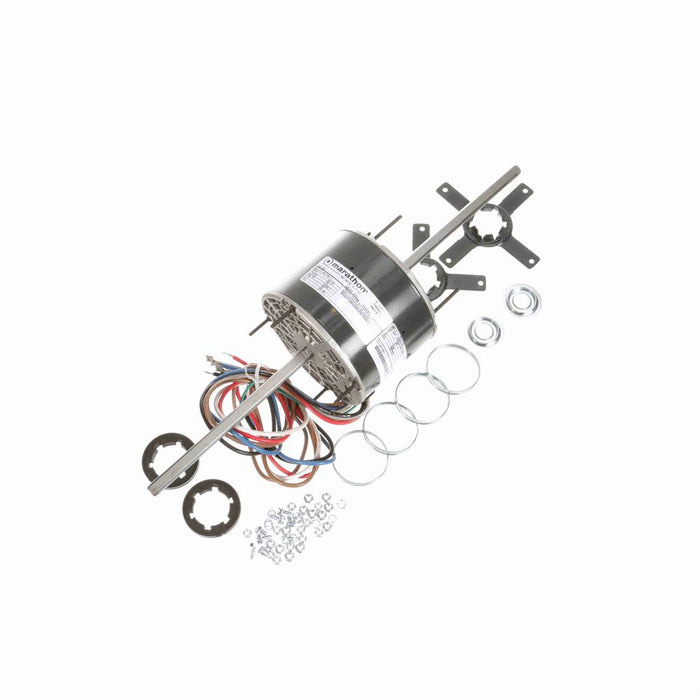

Marathon X040 5-5/8" Diameter Double Shafted Direct Drive Blower Motor - X040

$190.96

Catalog#: X040
Manufacturer: Marathon

  • Amps: 1.8
  • Bearings: Ball
  • Capacitor: 5MFD/370VAC Required
  • Duty Cycle: Continuous
  • Efficiency: 0.626
  • Enclosure Material: Steel
  • Enclosure Type: OAO (Open Air Over)
  • Frame: 48Z
  • HP: 1/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model #: 048A17O69
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 5-5/8"
  • Motor Shell Length: 3.75"
  • Mounting Orientation: Horizontal
  • Mounting: Stud
  • Number of Speeds: 3
  • Overall Length: 20"
  • Phase: 1
  • Product Type: PSC (Permanent Split Capacitor)
  • Rotation: Double Shafted
  • RPM: 1625
  • Service Factor: 1
  • Shaft Diameter: 1/2"
  • Shaft Length: 7.81" x 7.94"
  • Thermal Protection: Automatic
  • Volts: 208
  • Volts: 230
  • Ship Weight: 12 lbs.
