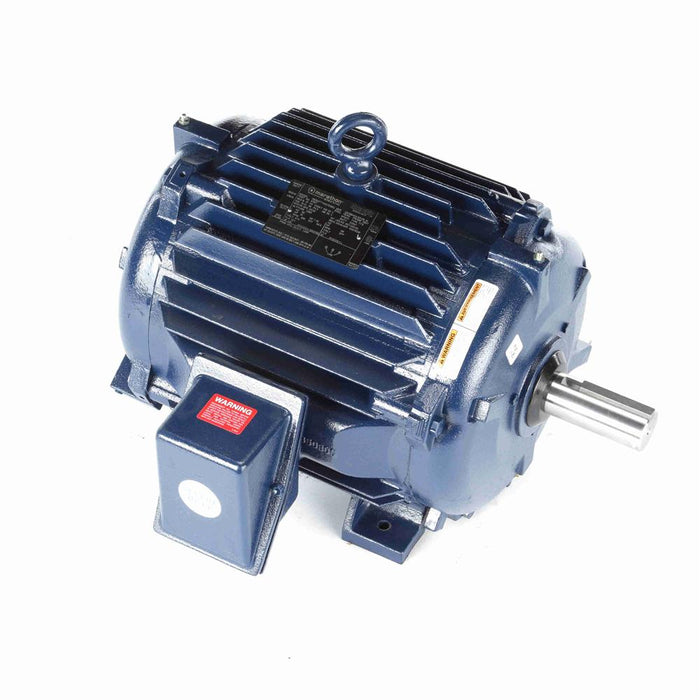

Marathon S567 Premium Efficient Kiln Duty Motor - S567
Sold out
$3,533.80
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: S567
Manufacturer: Marathon
Returns & Warranties
- Amps: 12.1
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.885
- Enclosure Material: Iron
- Enclosure Type: TEAO (Totally Enclosed Air Over)
- Frame: 284T
- HP: 10
- Hz: 60
- Insulation Class: H
- Manufacturer Model #: 284TTTNA17101
- Maximum Ambient Temperature: 90° C
- Motor Shell Length: 12.75"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 23.42"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 880
- Service Factor: 1.15
- Shaft Diameter: 1-7/8"
- Shaft Length: 4.83"
- Volts: 575
- Ship Weight: 457 lbs.
