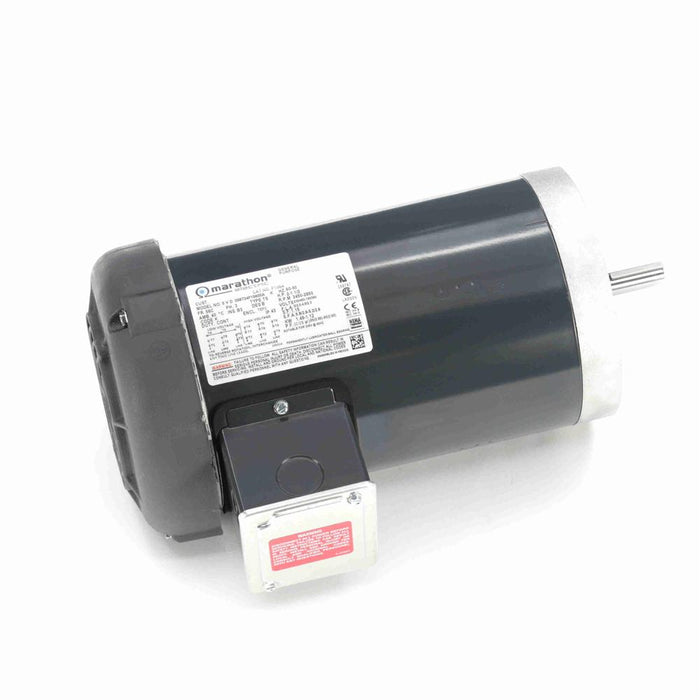

Marathon P106A General Purpose Motor - P106A
Sold out
$612.64
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: P106A
Manufacturer: Marathon
Returns & Warranties
- Amps: 5/2.5
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.855
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 56C
- HP: 2
- Hz: 60
- Insulation Class: B
- Manufacturer Model #: 056T34F15600
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 9.06"
- Mounting Orientation: Horizontal
- Mounting: Face
- Number of Speeds: 1
- Overall Length: 14.32"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3450
- Service Factor: 1.15
- Shaft Diameter: 5/8"
- Shaft Length: 2.06"
- Volts: 230
- Volts: 460
- Ship Weight: 47 lbs.
