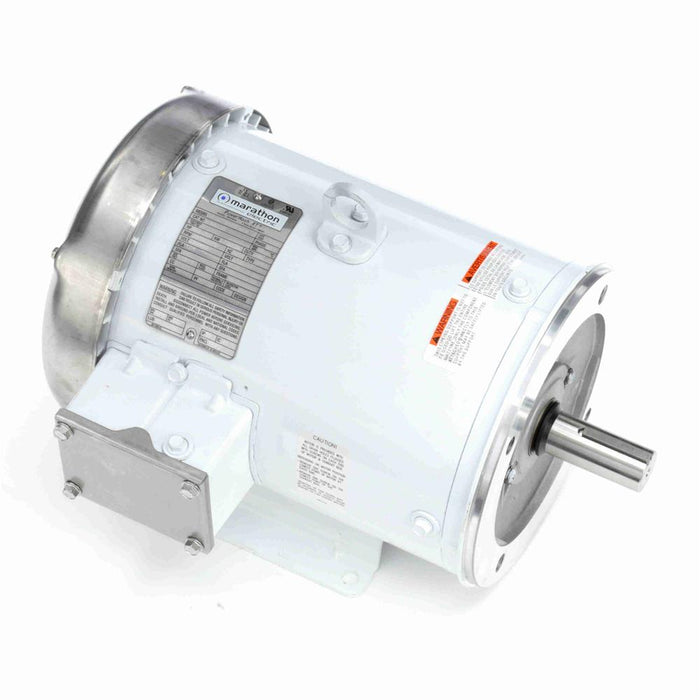

Marathon N615B Washdown Duty Motor - N615B
Sold out
$1,759.61
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: N615B
Manufacturer: Marathon
Returns & Warranties
- Amps: 12/6
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.885
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 184TC
- HP: 5
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 184TTWW6001
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 9.5"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 14.97"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3515
- Service Factor: 1.15
- Shaft Diameter: 1-1/8"
- Shaft Length: 2.88"
- Volts: 230
- Volts: 460
- Ship Weight: 115 lbs.
