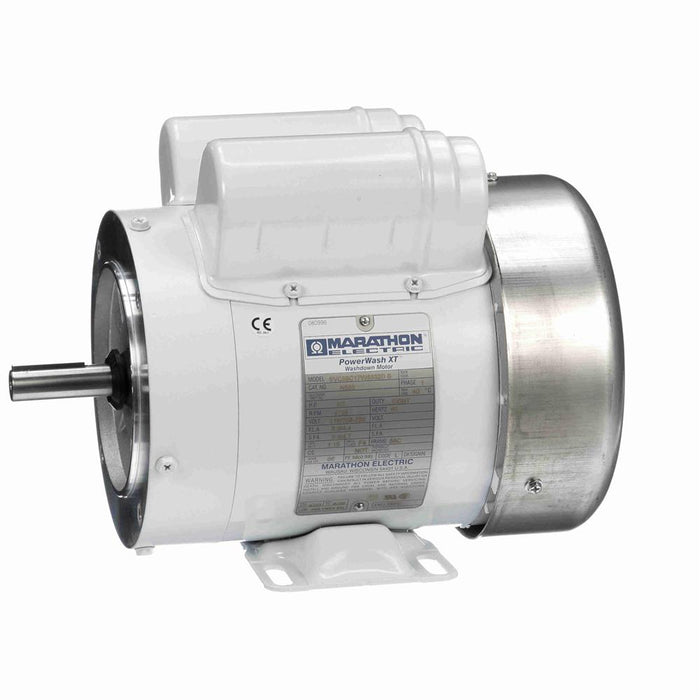

Marathon N559 Washdown Duty Motor - N559

$455.73

Catalog#: N559
Manufacturer: Marathon

  • Amps: 8.8/4.4
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.66
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56C
  • HP: 1/2
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model #: 056C17W5332
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 5"
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 11.19"
  • Phase: 1
  • Product Type: Capacitor Start
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.15
  • Shaft Diameter: 5/8"
  • Shaft Length: 1.94"
  • Volts: 115
  • Volts: 208
  • Volts: 230
  • Ship Weight: 27 lbs.
