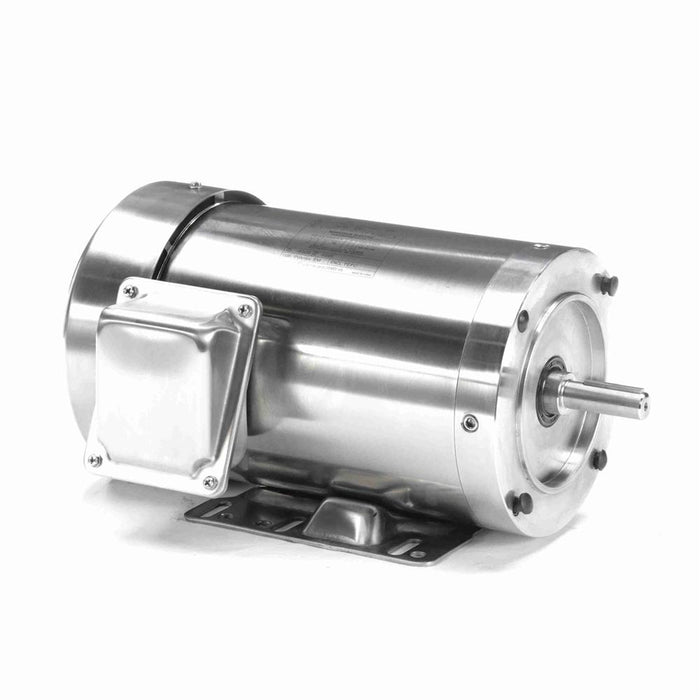

Marathon N457A General Purpose Motor - N457A

$890.95

Catalog#: N457A
Manufacturer: Marathon

  • Amps: 5.3-5/2.5
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.855
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56HC
  • HP: 2
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model #: 056T34WD15303
  • Maximum Ambient Temperature: 40° C
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 13.77"
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 3450
  • Service Factor: 1.15
  • Shaft Diameter: 5/8"
  • Shaft Length: 2.06"
  • Volts: 208
  • Volts: 230
  • Volts: 460
  • Ship Weight: 45 lbs.
