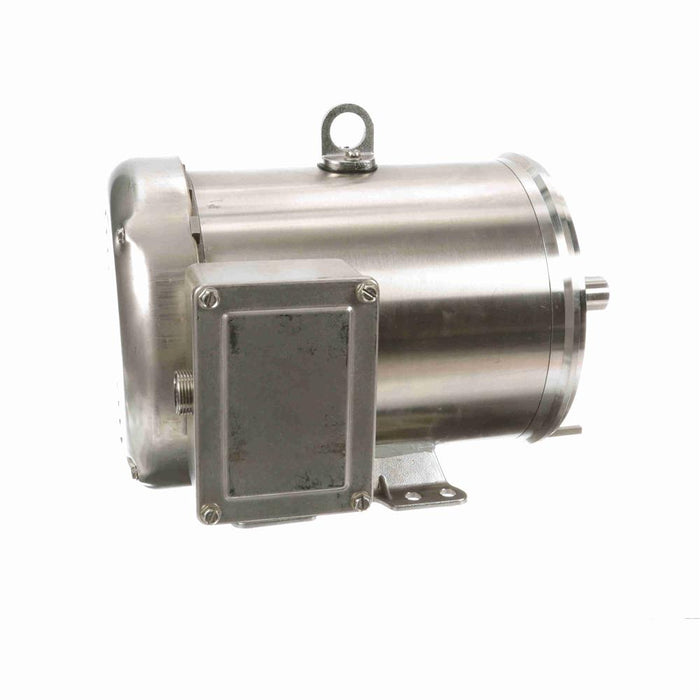

Marathon N183B General Purpose Motor - N183B

$1,422.46

Catalog#: N183B
Manufacturer: Marathon

  • Amps: 6/3
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.875
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 182TC
  • HP: 1-1/2
  • Hz: 60
  • Insulation Class: H
  • Manufacturer Model #: 182TTWD16076
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 9"
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 14.77"
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1170
  • Service Factor: 1.15
  • Shaft Diameter: 1-1/8"
  • Shaft Length: 2.88"
  • Volts: 230
  • Volts: 460
  • Ship Weight: 89 lbs.
