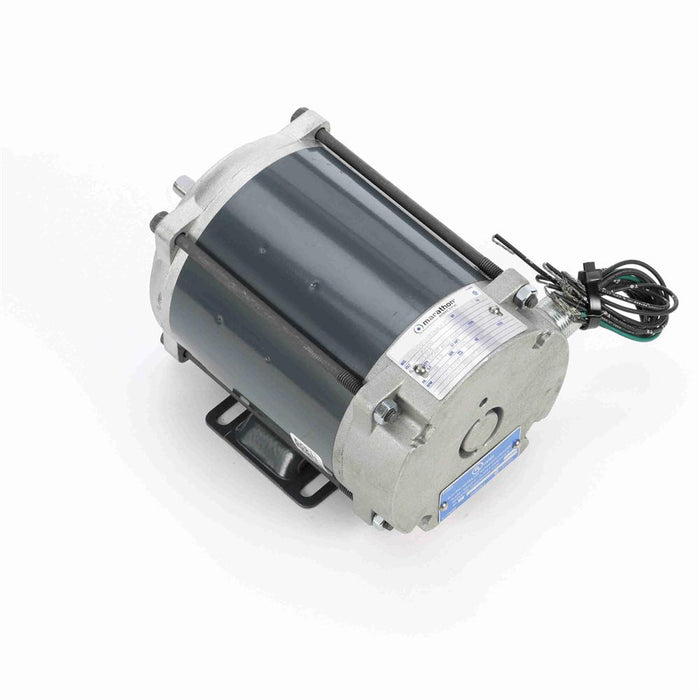

Marathon K717 5-5/8" Diameter Explosion Proof Hazardous Duty Motor - K717

$507.40

Catalog#: K717
Manufacturer: Marathon

  • Amps: 1.2/.6
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.66
  • Enclosure Material: Steel
  • Enclosure Type: EPNV (Explosion Proof Non Ventilated)
  • Frame: 48
  • HP: 1/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model #: 5K32GNB249
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 5-5/8"
  • Motor Shell Length: 5.17"
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 9.68"
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1
  • Shaft Diameter: 1/2"
  • Shaft Length: 1.59"
  • Thermal Protection: Automatic
  • Volts: 230
  • Volts: 460
  • Ship Weight: 19 lbs.
