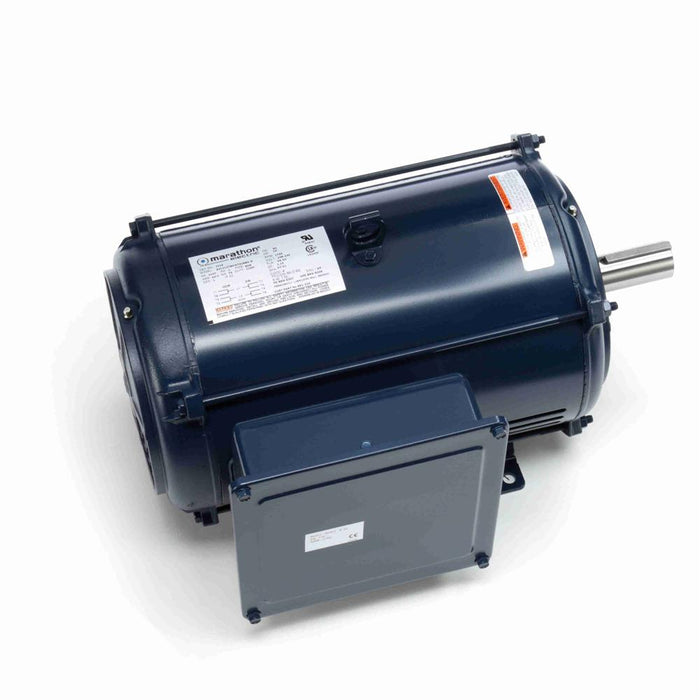

Marathon I116 Air Compressor Motor - I116

Sold out
$1,329.45

Out of stock in our warehouses. Please call for factory stock.

Catalog#: I116
Manufacturer: Marathon

  • Amps: 49-44
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.825
  • Enclosure Material: Steel
  • Enclosure Type: ODP (Open Dripproof)
  • Frame: 215T
  • HP: 10
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model #: 215TBDW7028
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 12.4"
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 19.29"
  • Phase: 1
  • Product Type: Capacitor Start/Capacitor Run
  • Rotation: Reversible
  • RPM: 1730
  • Service Factor: 1.15
  • Shaft Diameter: 1-3/8"
  • Shaft Length: 3.47"
  • Volts: 208
  • Volts: 230
  • Ship Weight: 157 lbs.
