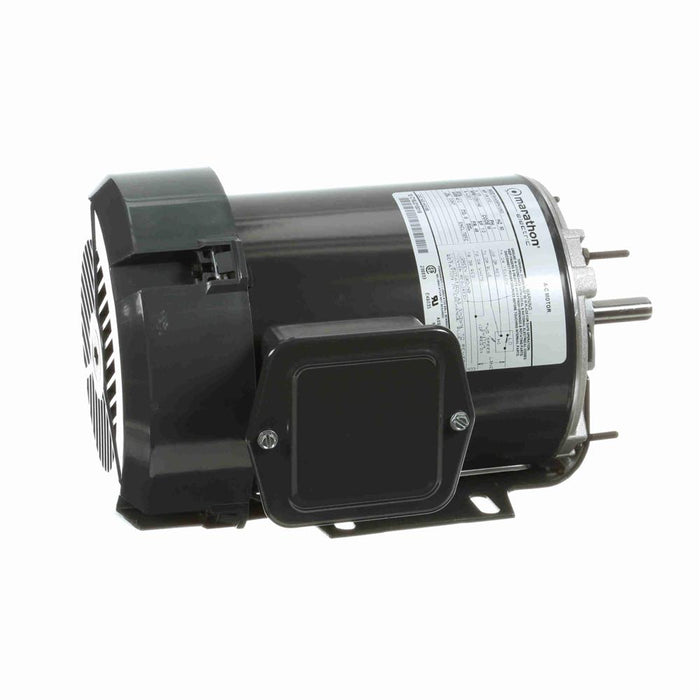

Marathon HG189 5-5/8" Diameter Blower Motor - HG189
$447.51
Catalog#: HG189
Manufacturer: Marathon
Returns & Warranties
- Amps: 4.2/2.7
- Bearings: Ball
- Duty Cycle: Continuous
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 48
- HP: 1/12
- HP: 1/4
- Hz: 60
- Insulation Class: B
- Manufacturer Model #: 5KH36PN108
- Maximum Ambient Temperature: 40° C
- Motor Diameter: 5-5/8"
- Motor Shell Length: 6.22"
- Mounting Orientation: Any
- Mounting: Base
- Number of Speeds: 2
- Overall Length: 11"
- Phase: 1
- Product Type: Split Phase
- Rotation: Reversible
- RPM: 1140/1725
- Service Factor: 1
- Shaft Diameter: 1/2"
- Shaft Length: 1.5"
- Volts: 115
- Ship Weight: 23 lbs.
