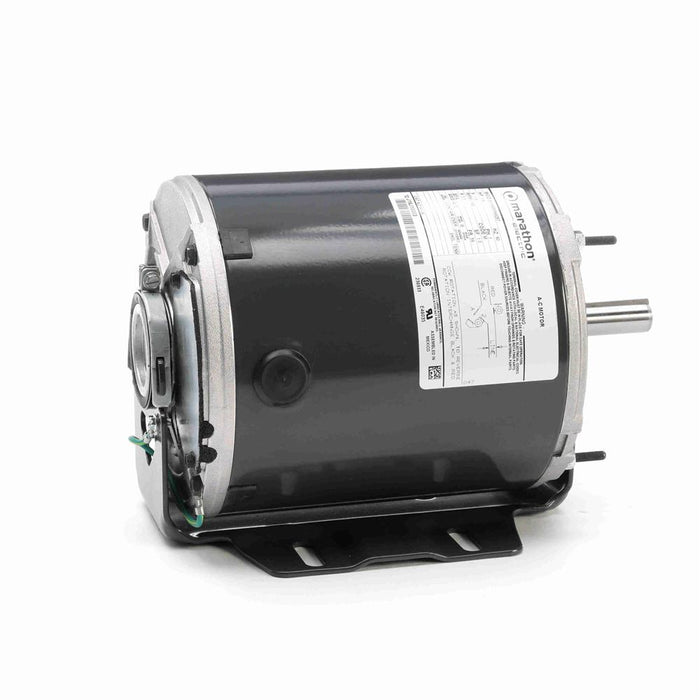

Marathon H136 6-1/2" Diameter Farm Duty Motor - H136
Sold out
$370.13
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: H136
Manufacturer: Marathon
Returns & Warranties
- Amps: 5.6
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.53
- Enclosure Material: Steel
- Enclosure Type: TENV (Totally Enclosed Non Ventilated)
- Frame: 56
- HP: 1/4
- Hz: 60
- Insulation Class: B
- Manufacturer Model #: 5KH49MN6057
- Maximum Ambient Temperature: 40° C
- Motor Diameter: 6-1/2"
- Motor Shell Length: 6.15"
- Mounting Orientation: Any
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 10.48"
- Phase: 1
- Product Type: Split Phase
- Rotation: Reversible
- RPM: 1140
- Service Factor: 1
- Shaft Diameter: 5/8"
- Shaft Length: 1.88"
- Volts: 115
- Ship Weight: 23 lbs.
