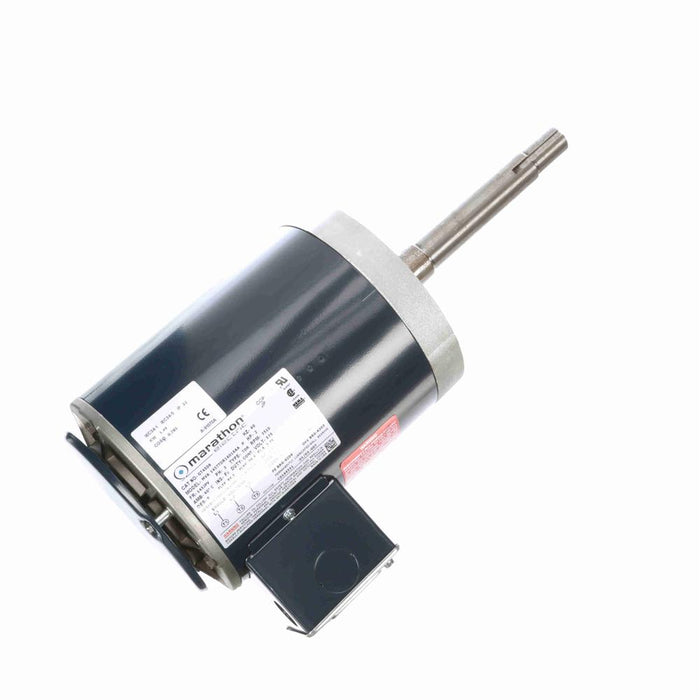

Marathon GT4506 Premium Efficient Close Coupled Pump Motor - GT4506
Sold out
$463.68
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: GT4506
Manufacturer: Marathon
Returns & Warranties
- Amps: 2.25
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.865
- Enclosure Material: Steel
- Enclosure Type: ODP (Open Dripproof)
- Frame: 145JPV
- HP: 2
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 145TTDR16016
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 7.06"
- Mounting Orientation: Horizontal/Vertical Shaft Down
- Mounting: Face
- Number of Speeds: 1
- Overall Length: 16.48"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3510
- Service Factor: 1.15
- Shaft Diameter: 7/8"
- Shaft Length: 7.31"
- Volts: 575
- Ship Weight: 33 lbs.
