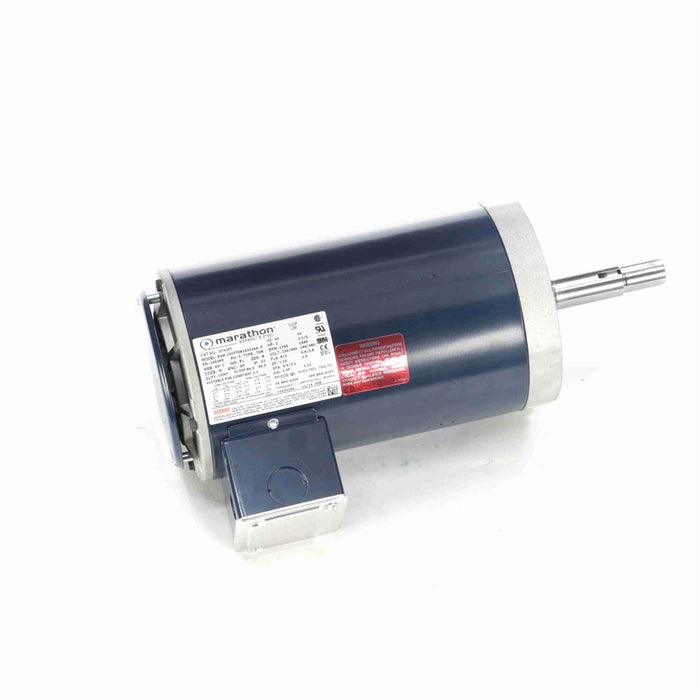

Marathon GT4107 Premium Efficient Close Coupled Pump Motor - GT4107
$402.34
Catalog#: GT4107
Manufacturer: Marathon
Returns & Warranties
- Amps: 6/3
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.865
- Enclosure Material: Steel
- Enclosure Type: ODP (Open Dripproof)
- Frame: 145JMV
- HP: 2
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 145TTDR16332
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 9.56"
- Mounting Orientation: Horizontal/Vertical Shaft Down
- Mounting: Face
- Number of Speeds: 1
- Overall Length: 15.92"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1750
- Service Factor: 1.15
- Shaft Diameter: 7/8"
- Shaft Length: 4.25"
- Volts: 230
- Volts: 460
- Ship Weight: 49 lbs.
