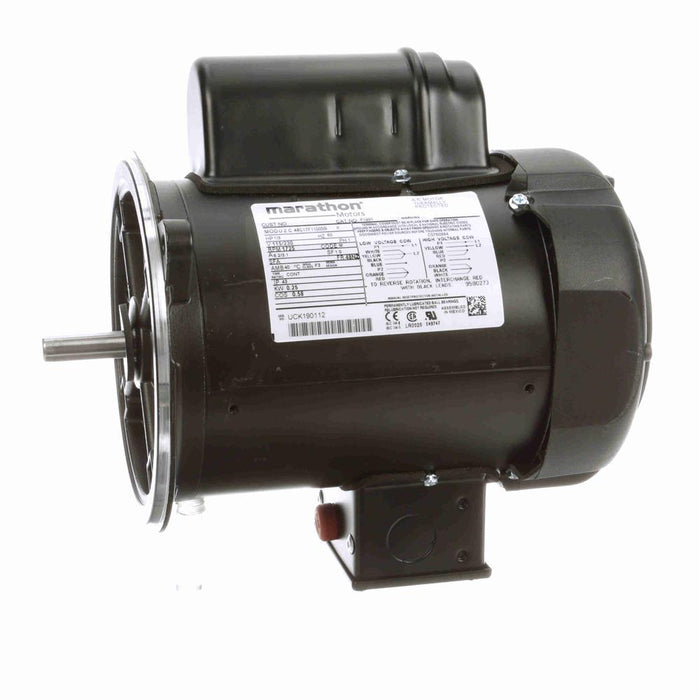

Marathon F1201 5-5/8" Diameter Auger Drive Farm Duty Motor - F1201

$229.00

Catalog#: F1201
Manufacturer: Marathon

  • Amps: 6.2/3.1
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.61
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 48NZ
  • HP: 1/3
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model #: 048C17F11005
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 5-5/8"
  • Motor Shell Length: 6"
  • Mounting Orientation: Horizontal
  • Mounting: Flange
  • Number of Speeds: 1
  • Overall Length: 10.31"
  • Phase: 1
  • Product Type: Capacitor Start
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1
  • Shaft Diameter: 1/2"
  • Shaft Length: 1.75"
  • Thermal Protection: Manual
  • Volts: 115
  • Volts: 230
  • Ship Weight: 22 lbs.
