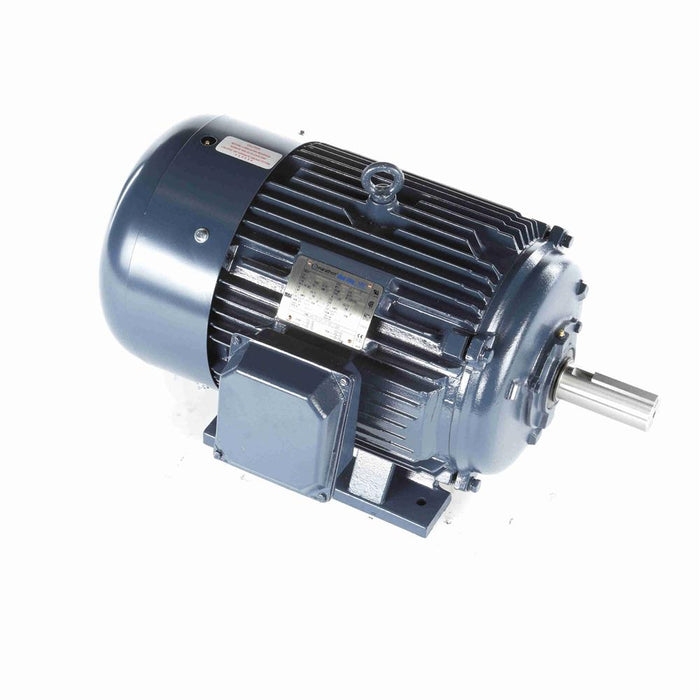

Marathon E817A Premium Efficient General Purpose Motor - E817A
Sold out
$2,378.67
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: E817A
Manufacturer: Marathon
Returns & Warranties
- Amps: 28
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.941
- Enclosure Material: Iron
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 286T
- HP: 30
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 286TTFC6031
- Maximum Ambient Temperature: 40° C
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 27.83"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1780
- Service Factor: 1.15
- Shaft Diameter: 1-7/8"
- Shaft Length: 4.62"
- Volts: 575
- Ship Weight: 432 lbs.
