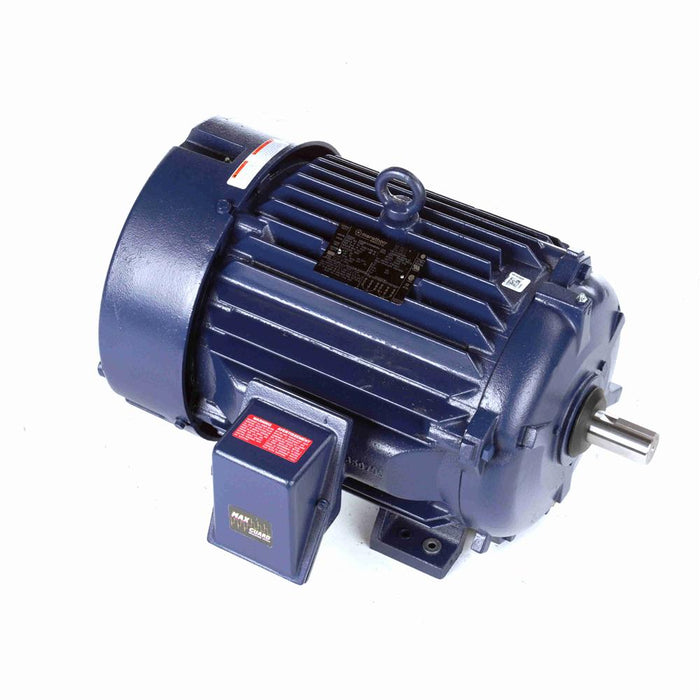

Marathon E490 Premium Efficient Automotive Duty Motor - E490
Sold out
$3,022.71
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: E490
Manufacturer: Marathon
Returns & Warranties
- Amps: 67/33.5
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.93
- Enclosure Material: Iron
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 286TS
- HP: 30
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 286TSTFNA6804
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 14.25"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 26.56"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3555
- Service Factor: 1.15
- Shaft Diameter: 1-5/8"
- Shaft Length: 3.45"
- Volts: 230
- Volts: 460
- Ship Weight: 500 lbs.
