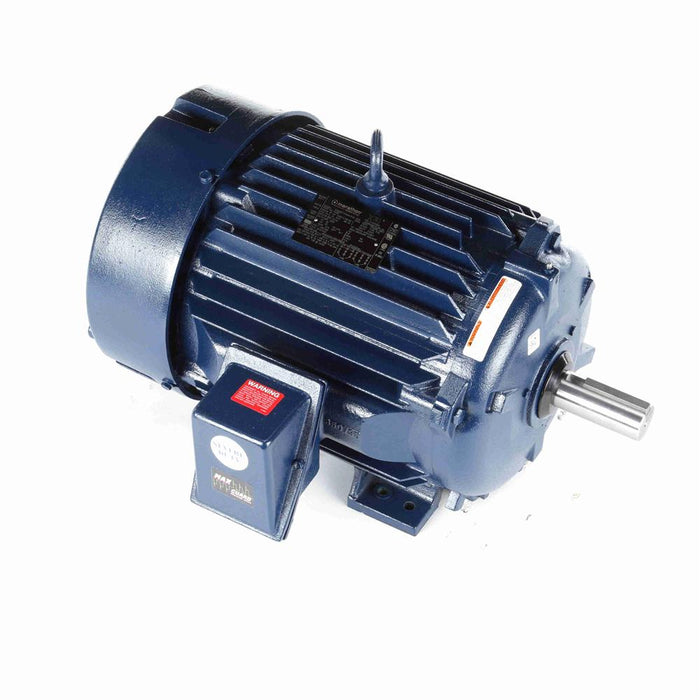

Marathon E486 Premium Efficient Automotive Duty Motor - E486
Sold out
$3,473.22
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: E486
Manufacturer: Marathon
Returns & Warranties
- Amps: 53.5/26.8
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.917
- Enclosure Material: Iron
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 286T
- HP: 20
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 286TTFNA6876
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 14.25"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 27.71"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1175
- Service Factor: 1.15
- Shaft Diameter: 1-7/8"
- Shaft Length: 4.82"
- Volts: 230
- Volts: 460
- Ship Weight: 550 lbs.
