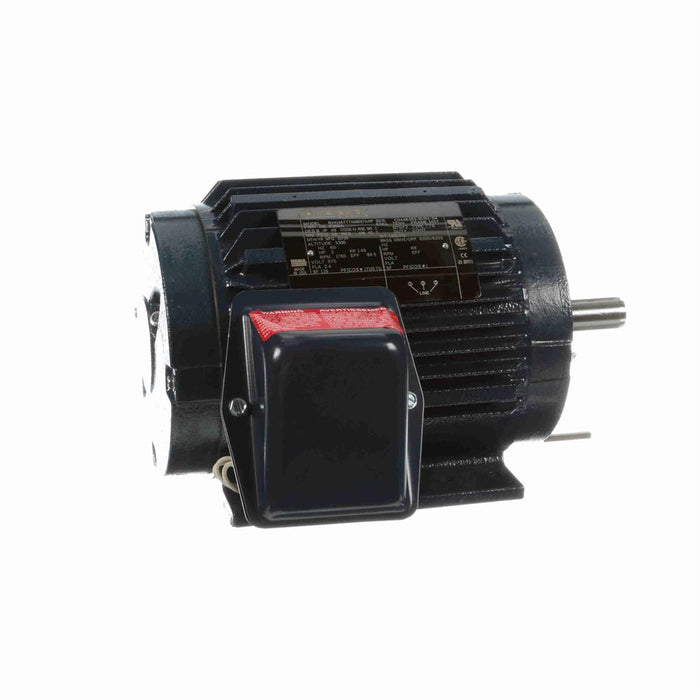

Marathon E302A General Purpose Motor - E302A
Sold out
$651.01
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: E302A
Manufacturer: Marathon
Returns & Warranties
- Amps: 2.4
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.865
- Enclosure Material: Iron
- Enclosure Type: TENV (Totally Enclosed Non Ventilated)
- Frame: 145T
- HP: 2
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 145TTTN16037
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 7.5"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 12.68"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1760
- Service Factor: 1.15
- Shaft Diameter: 7/8"
- Shaft Length: 2.56"
- Volts: 575
- Ship Weight: 66 lbs.
