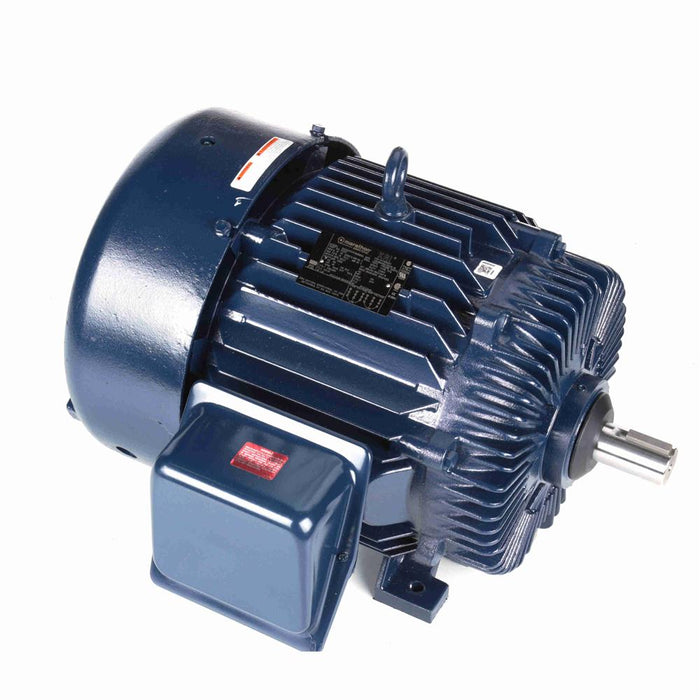

Marathon E224 Premium Efficient General Purpose Motor - E224
Sold out
$2,848.99
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: E224
Manufacturer: Marathon
Returns & Warranties
- Amps: 94/47
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.936
- Enclosure Material: Iron
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 324TS
- HP: 40
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 324TSTFS6001
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 11.5"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 27.6"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3545
- Service Factor: 1.15
- Shaft Diameter: 1-7/8"
- Shaft Length: 4"
- Volts: 230
- Volts: 460
- Ship Weight: 675 lbs.
