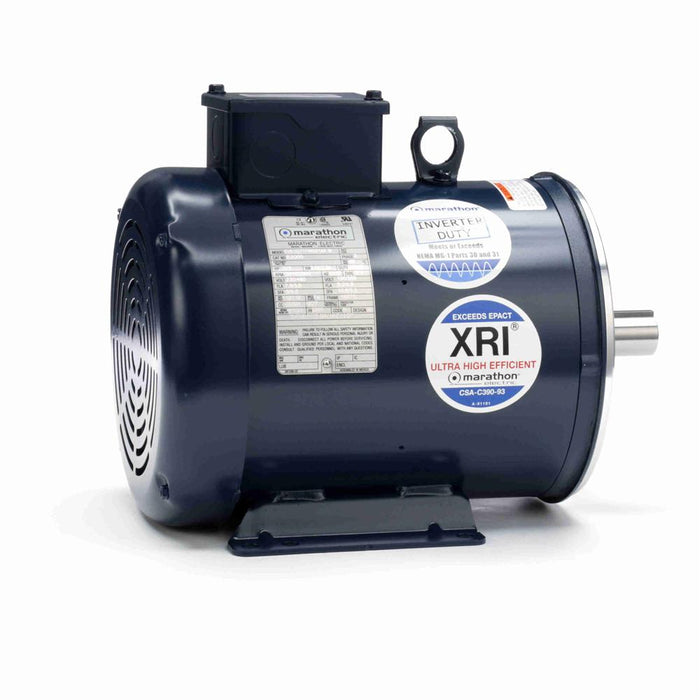

Marathon E2009 Premium Efficient General Purpose Motor - E2009
Sold out
$717.50
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: E2009
Manufacturer: Marathon
Returns & Warranties
- Amps: 7.8/3.9
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.865
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 182TC
- HP: 3
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 182TTFW6001
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 8.5"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 13.97"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3510
- Service Factor: 1.15
- Shaft Diameter: 1-1/8"
- Shaft Length: 2.88"
- Volts: 230
- Volts: 460
- Ship Weight: 81 lbs.
