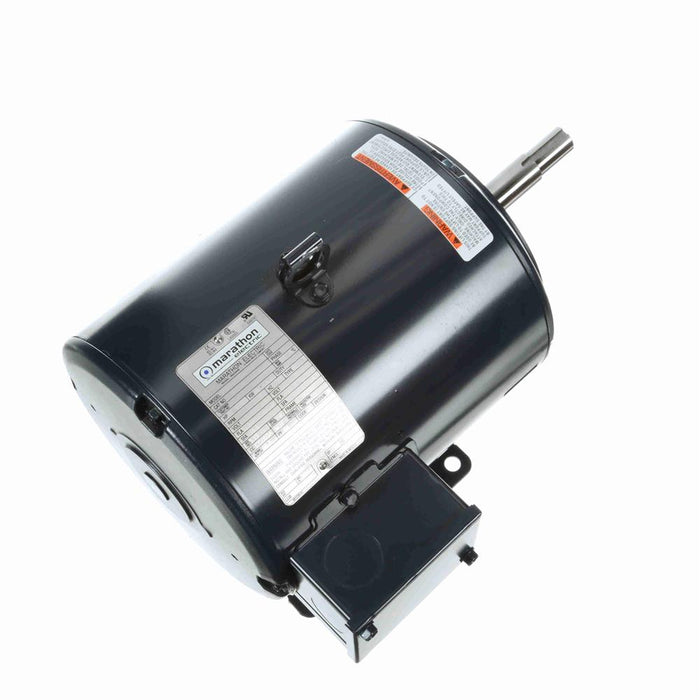

Marathon E150B Close Coupled Pump Motor - E150B

Sold out
$921.81

Out of stock in our warehouses. Please call for factory stock.

Catalog#: E150B
Manufacturer: Marathon

  • Amps: 13.8
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.865
  • Enclosure Material: Steel
  • Enclosure Type: ODP (Open Dripproof)
  • Frame: 182JM
  • HP: 5
  • Hz: 60
  • Insulation Class: F
  • Manufacturer Model #: 182TTDW16311
  • Maximum Ambient Temperature: 40° C
  • Motor Shell Length: 9"
  • Mounting Orientation: Horizontal
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 14.82"
  • Phase: 3
  • Product Type: Three Phase
  • Rotation: Reversible
  • RPM: 3495
  • Service Factor: 1.15
  • Shaft Diameter: 7/8"
  • Shaft Length: 4.25"
  • Volts: 200
  • Ship Weight: 65 lbs.
