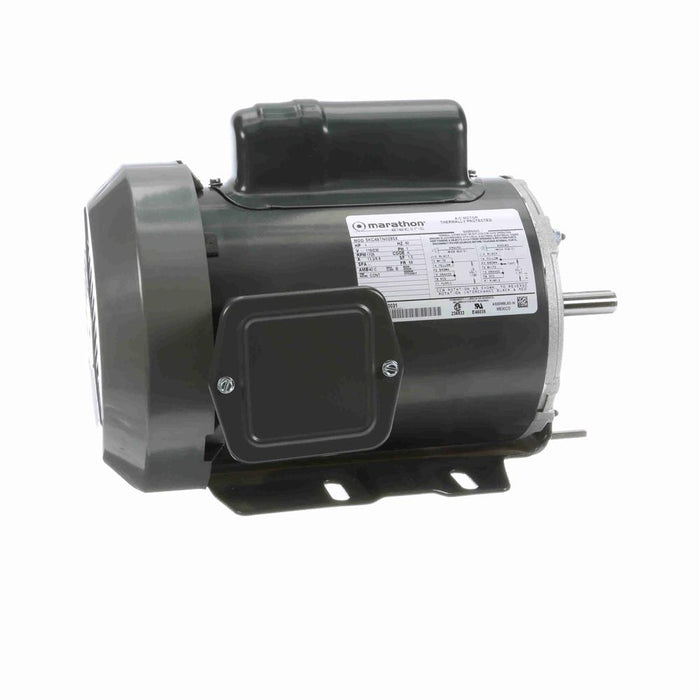

Marathon C292 6-1/2" Diameter Blower Motor - C292

Sold out
$645.70

Out of stock in our warehouses. Please call for factory stock.

Catalog#: C292
Manufacturer: Marathon

  • Amps: 13.2/6.6
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.722
  • Enclosure Material: Steel
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 56
  • HP: 1
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model #: 5KC49TN0285X
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 6-1/2"
  • Motor Shell Length: 7.68"
  • Mounting Orientation: Any
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 13.07"
  • Phase: 1
  • Product Type: Capacitor Start
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1
  • Shaft Diameter: 5/8"
  • Shaft Length: 1.88"
  • Thermal Protection: Automatic
  • Volts: 115
  • Volts: 230
  • Ship Weight: 38 lbs.
