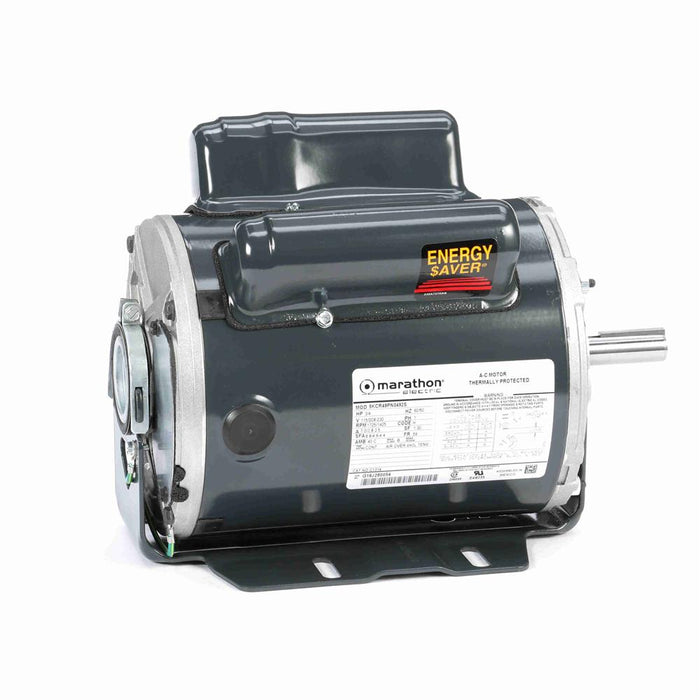

Marathon C1314 6-1/2" Diameter Farm Duty Motor - C1314

$215.82

Catalog#: C1314
Manufacturer: Marathon

  • Amps: 7.0/3.8-3.5
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.755
  • Enclosure Material: Steel
  • Enclosure Type: TENV (Totally Enclosed Non Ventilated)
  • Frame: 56
  • HP: 3/4
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model #: 5KCR49PN0492S
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 6-1/2"
  • Motor Shell Length: 7.15"
  • Mounting Orientation: Any
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 11.38"
  • Phase: 1
  • Product Type: Capacitor Start/Capacitor Run
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.3
  • Shaft Diameter: 5/8"
  • Shaft Length: 1.88"
  • Thermal Protection: Automatic
  • Volts: 115
  • Volts: 208
  • Volts: 230
  • Ship Weight: 30 lbs.
