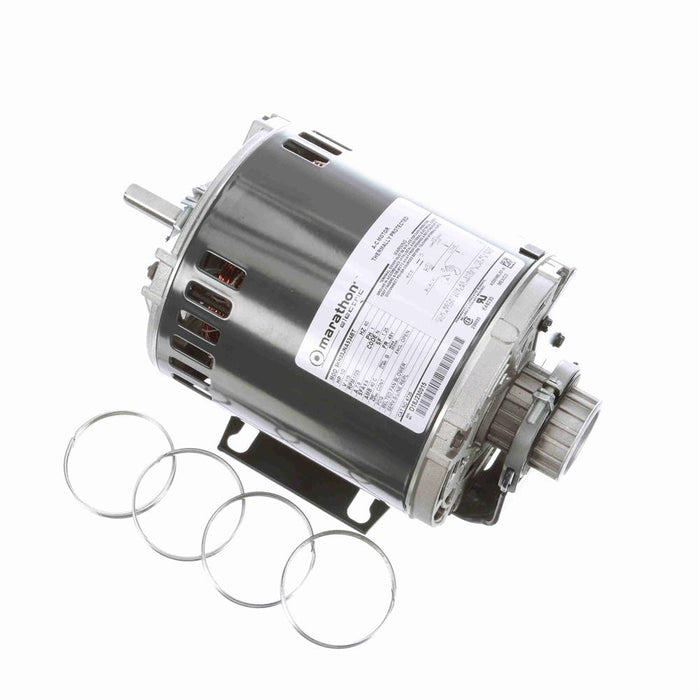

Marathon 4735 5-5/8" Diameter Furnace Blower Motor - 4735

$267.88

Catalog#: 4735
Manufacturer: Marathon

  • Amps: 7.9
  • Bearings: Ball
  • Duty Cycle: Continuous
  • Efficiency: 0.625
  • Enclosure Material: Steel
  • Enclosure Type: OAO (Open Air Over)
  • Frame: 48Y
  • HP: 1/2
  • Hz: 60
  • Insulation Class: B
  • Manufacturer Model #: 5KH33JNA534T
  • Maximum Ambient Temperature: 40° C
  • Motor Diameter: 5-5/8"
  • Motor Shell Length: 5.41"
  • Mounting Orientation: Any
  • Mounting: Base
  • Number of Speeds: 1
  • Overall Length: 10.28"
  • Phase: 1
  • Product Type: Split Phase
  • Rotation: Reversible
  • RPM: 1725
  • Service Factor: 1.25
  • Shaft Diameter: 1/2"
  • Shaft Length: 1.5"
  • Thermal Protection: Automatic
  • Volts: 115
  • Ship Weight: 15 lbs.
