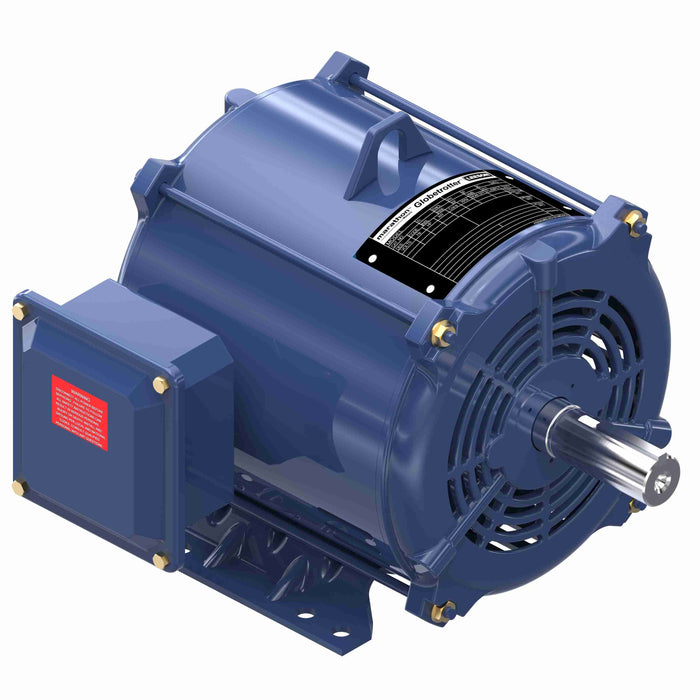

Marathon GT0015A Globetrotter® General Purpose Three Phase Motor
$582.07
Catalog#: GT0015A
Manufacturer: Marathon
Returns & Warranties
- Product Type: 3 Phase
- HP: 7-1/2
- RPM: 3510
- Volts: 208-230/460
- Amps: 19.6-18.4/9.2
- Hz: 60
- Phase: 3
- Frame: 184T
- Enclosure Type: DP (Dripproof)
- Enclosure Material: Rolled Steel
- Mounting Type: Rigid Base
- Mounting Orientation: Horizontal
- Shaft Diameter: 1-1/8"
- Shaft Length: 2.75"
- Overall Length: 13.25"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor: 1.15
- Bearings: Ball
- Efficiency: 88.5%
- Maximum Ambient Temperature: 40° C
- Thermal Protection: None
- Insulation Class: F
- Inverter Torque: Variable 10:1
- Duty Cycle: Continuous
- Manufacturer Model # 184TTDBD6001
- Ship Weight: 64 lbs.
