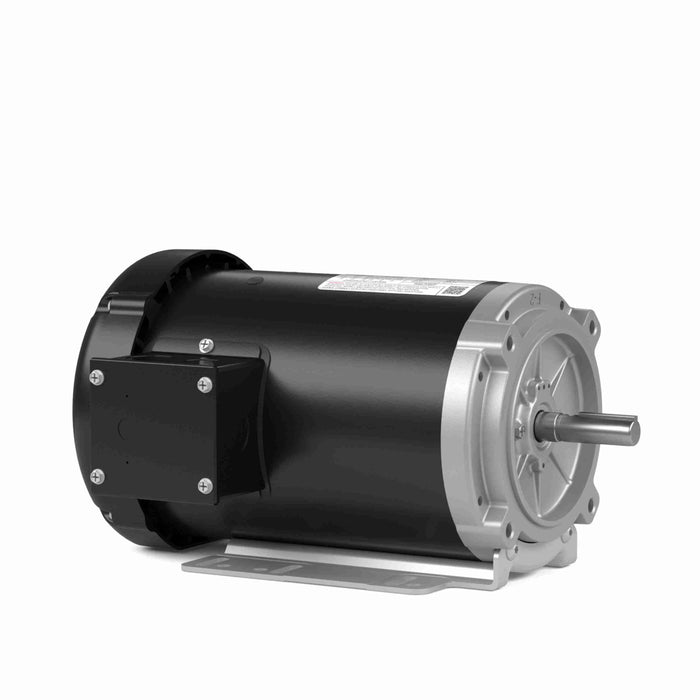

Leeson FX13FK002 Three Phase General Purpose Motor
Sold out
$324.67
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: FX13FK002
Manufacturer: Leeson
Returns & Warranties
- HP: 1/3
- RPM: 1725
- Volts: 575
- Amps: 0.64
- Hz: 60
- Phase: 3
- Frame: 56C
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Mounting Type: Removable Base
- Rotation: Reversible
- Number of Speeds: 1
- Motor Diameter: 6.5"
- Overall Length: 10.55"
- Shaft Diameter: 5/8"
- Shaft Length: 1-7/8"
- Bearings: Ball
- Ambient Temperature: 40C
- Efficiency: 65.5%
- Insulation Class: F
- Inverter Load: Constant 10:1
- Ship Weight: 20 lbs.
