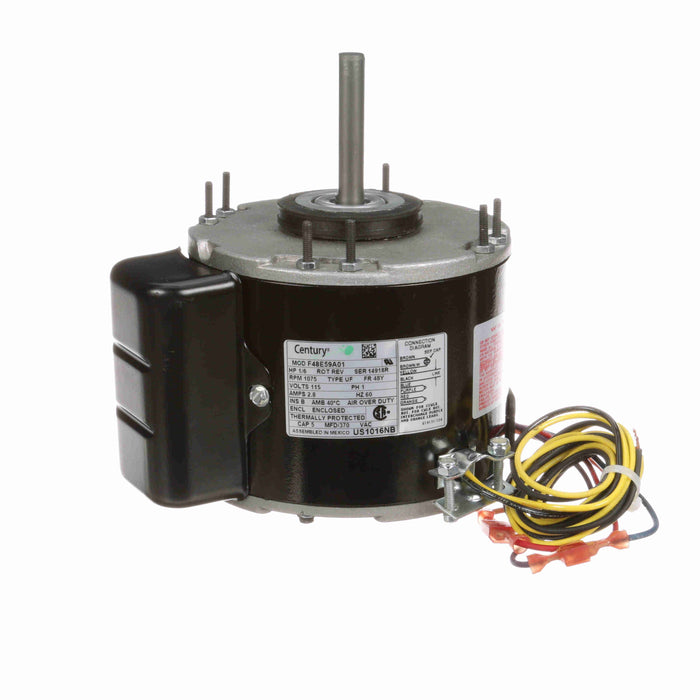

Century US1016NB 5.6" Diameter HVAC Unit Heater Motor - US1016NB
Sold out
$207.10
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: US1016NB
Manufacturer: Century
Returns & Warranties
- Product Type: PSC (Permanent Split Capacitor)
- HP: 1/6
- RPM: 1075
- Volts: 115
- Amps: 2.8
- Hz: 60
- Phase: 1
- Frame: 48Y
- Enclosure Type: TEAO (Totally Enclosed Air Over)
- Mounting: Stud/Ring
- Motor Diameter: 5-5/8"
- Shaft Diameter: 1/2"
- Shaft Length: 2.99"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Sleeve
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: 5MFD @ 370VAC (Included)
- US1016NB is listed in Century's cross reference as a possible substitute for the following: A.O. Smith 749, A.O. Smith F48E59A01, Universal Electric 518, Universal Electric 520, Universal Electric 749, Universal Electric HE3E221, Universal Electric HE3E234, Universal Electric HE3E7234, Universal Electric HE3F231, Universal Electric HF3G019, Fasco D260, Dayton 3M899, Emerson 9034
- 80" Leads
- 4 Through Bolts And 4 Dummy Studs On A 5.15" Diameter Bolt Circle
- Ship Weight: 11 lbs.
