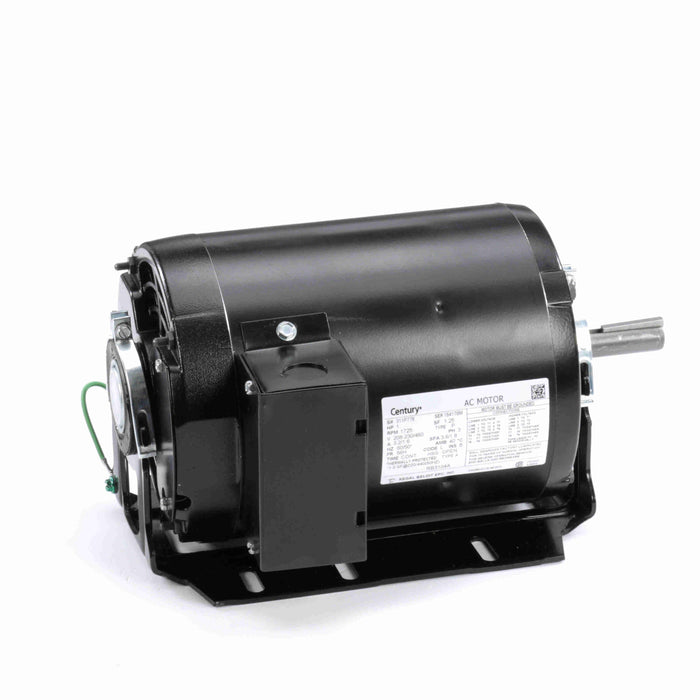

Century RB3104A HVAC Self Cooled Fan Motor - RB3104A
Sold out
$153.94
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: RB3104A
Manufacturer: Century
Returns & Warranties
- Product Type: 3 Phase
- HP: 1
- RPM: 1725
- Volts: 208-230/460
- Amps: 3.2/1.6
- Hz: 50/60
- Phase: 3
- Frame: 56H
- Enclosure Type: OAO (Open Air Over)
- Mounting: Cradle
- Motor Diameter: 6-1/2"
- Shaft Diameter: 5/8" Keyed
- Shaft Length: 1-7/8"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.25
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- RB3104A is listed in Century's cross reference as a possible substitute for the following: A.O. Smith 311P776, A.O. Smith 327P656, A.O. Smith P56L4T8, A.O. Smith 311P413, A.O. Smith BK3104, A.O. Smith P56L4C1, A.O. Smith P56L4C1A1, A.O. Smith P56L4C2, A.O. Smith P56L4C3, A.O. Smith P56L4C4, A.O. Smith P56L4C4C2, A.O. Smith P56L4T11, A.O. Smith P56L4T11A1, A.O. Smith P56L4T11B1, A.O. Smith P56L4T11B3, A.O. Smith P56L4T11B4, A.O. Smith P56L4T11B5, A.O. Smith P56L4T11C31, A.O. Smith P56L4T8B1, A.O. Smith P56L4T8B3, A.O. Smith P56L4T8C30, Carrier/BDP HD52DL856, Carrier/BDP P261-7102, Century H852, Fasco D6628, Franklin 13698, Franklin F1164, GE K1412, Johnstone Supply S88-196, Marathon G921, Marathon Q56T17D5327, Universal Electric 866, Marathon G100
- Ship Weight: 28 lbs.
