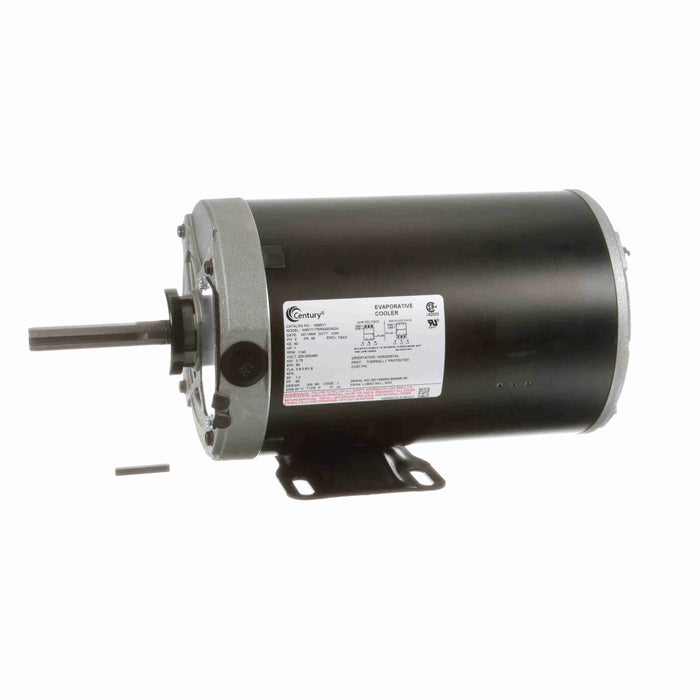

Century H685V1 3 Phase 6-1/2" Diameter Condenser Fan Motor - H685V1
Sold out
$386.81
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: H685V1
Manufacturer: Century
Returns & Warranties
- H685V1 replaces A.O. Smith/Century stock# H685. NOTE: The body length on this new motor is approx. 2 1/4" longer than the original motor. This is to meet the new efficiency requirements.
- Product Type: 3 Phase
- HP: 1
- RPM: 1140
- Volts: 200-230/460
- Amps: 3.8-3.6/1.8
- Hz: 60
- Phase: 3
- Frame: 56Y
- Enclosure Type: TEAO (Totally Enclosed Air Over)
- Mounting: Rigid
- Motor Diameter: 6-1/2"
- Shaft Diameter: 5/8" Keyed
- Shaft Length: 4"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 60° C
- Insulation Class: B
- Duty Cycle: Continuous
- H685V1 is listed in Century's cross reference as a substitute for the following: A.O. Smith 182514, Century 165832, Century 182514, Emerson P63SYDBY-3115, Emerson P63SYDYK-3497, GE K1485, GE K48PG1224AS, Dayton 4ME20, Dayton 5M598, Johnstone Supply S89-201, Marathon 56T11D5202, Emerson 1820, Marathon X513, Universal Electric 721
- Ship Weight: 34 lbs.
