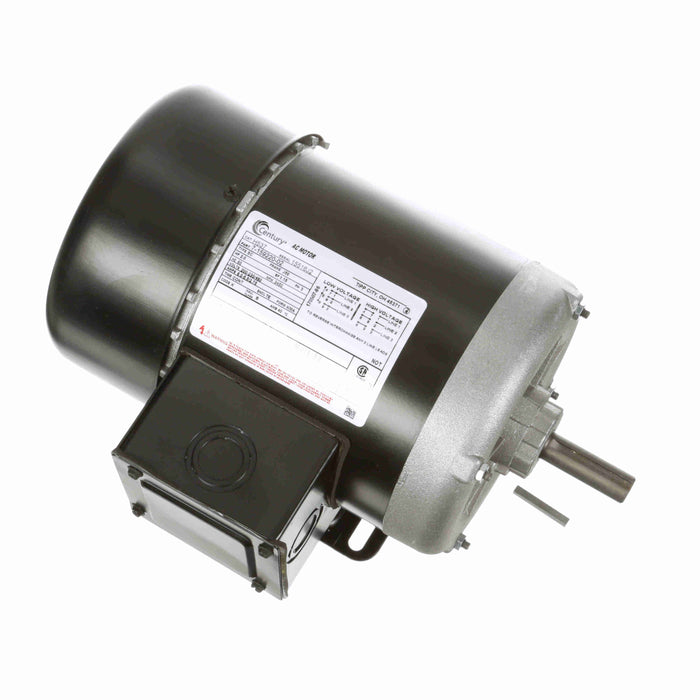

Century H537 3 Phase 6-1/2" Diameter General Purpose Motor - H537
Sold out
$105.25
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: H537
Manufacturer: Century
Returns & Warranties
- Product Type: 3 Phase
- HP: 2
- RPM: 3450
- Volts: 200-230/460
- Amps: 6/5.5/2.75
- Hz: 60
- Phase: 3
- Frame: 56
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Mounting: Rigid
- Motor Diameter: 6-1/2"
- Shaft Diameter: 5/8" Keyed
- Shaft Length: 1-7/8"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.15
- Bearings: Ball
- Thermal Protection: None
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- H537 is listed in Century's cross reference as a possible substitute for the following: A.O. Smith 159220, A.O. Smith 327P266, A.O. Smith EB3202, A.O. Smith P56N2T3100, A.O. Smith P56N2TE100, A.O. Smith P56N2TE101, A.O. Smith P56N2UE104, Baldor M3555, Century 159220, Century H537, Dayton 3N445, Dayton 3N564, Leeson 111916, Leland Faraday M22020, Marathon G384, Universal Electric H537
- Ship Weight: 34 lbs.
