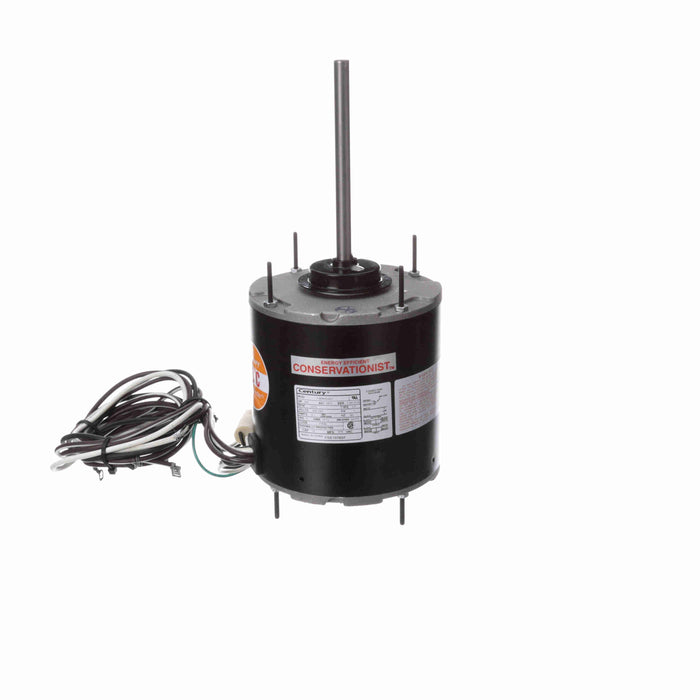

Century FSE1076SF 5.6" Diameter HVAC Condenser Fan Motor - FSE1076SF

$155.69

Catalog#: FSE1076SF
Manufacturer: Century

  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 3/4
  • RPM: 1075
  • Volts: 208-230
  • Amps: 5.1
  • Hz: 60
  • Phase: 1
  • Frame: 48
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Hole/Ring/Stud
  • Motor Diameter: 5-5/8"
  • Shaft Diameter: 1/2"
  • Shaft Length: 6-1/2"
  • Rotation: Reversible
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 70° C
  • Insulation Class: F
  • Duty Cycle: Continuous
  • Capacitor: 15MFD @ 370VAC Required
  • FSE1076SF is listed in Century's cross reference as a substitute for the following: A.O. Smith F48W85A01, Fasco 3731HS, GE 3731HS, GE 5KCP39SGY805S, Emerson 1868, Emerson 1868H
  • 4 Mounting Holes In Shell
  • 36" Leads
  • Energy Efficient
  • Ship Weight: 18 lbs.
