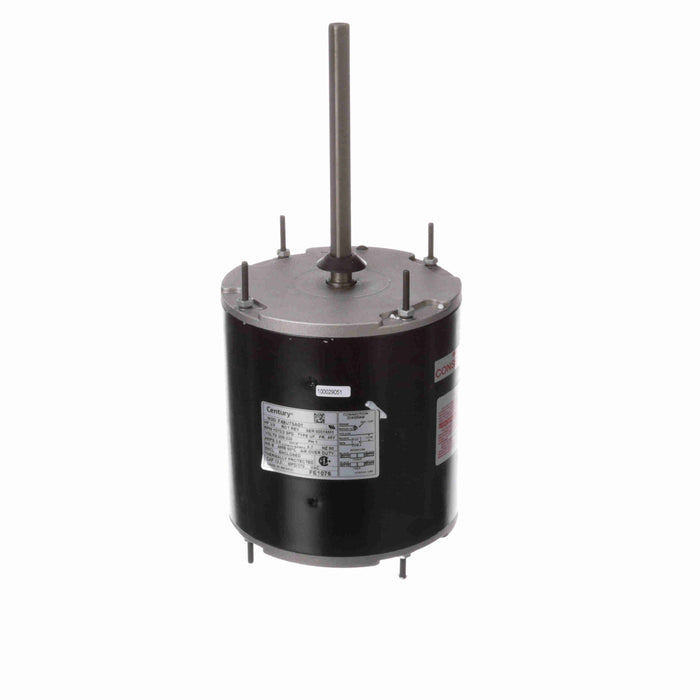

Century FE1076 5.6" Diameter HVAC Condenser Fan Motor - FE1076

$188.13

Catalog#: FE1076
Manufacturer: Century

  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 3/4
  • RPM: 1075
  • Volts: 208-230
  • Amps: 3.8
  • Hz: 60
  • Phase: 1
  • Frame: 48Y
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting: Band/Stud
  • Motor Diameter: 5-5/8"
  • Shaft Diameter: 1/2"
  • Shaft Length: 6"
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.00
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 60° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 12.5MFD @ 370VAC Required
  • FE1076 is listed in Century's cross reference as a substitute for the following: A.O. Smith F48SQ6V51, A.O. Smith F48U75A01, GE 3431, Dayton 4MB47, Dayton 4M132
  • Has Reversing Plug
  • 26" Leads
  • Energy Efficient
  • Ship Weight: 21 lbs.
