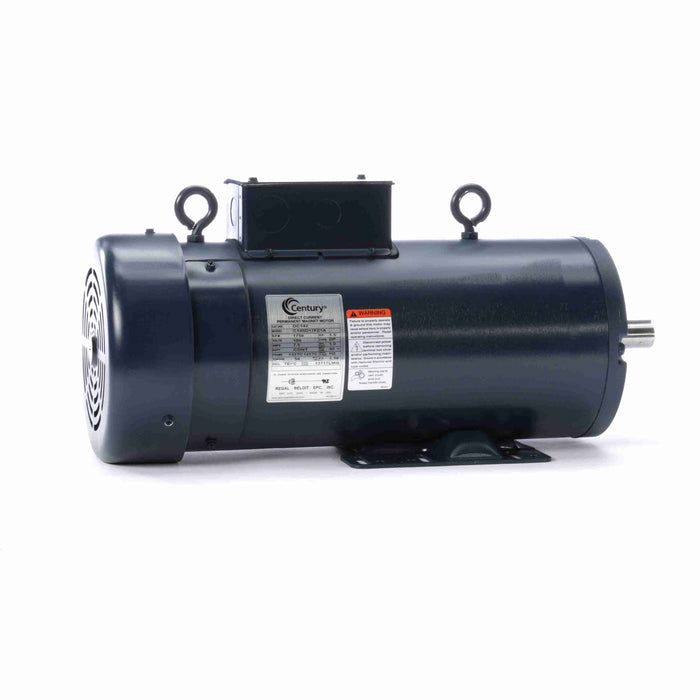

Century DC142 DC General Purpose Motor - DC142
Sold out
$590.51
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: DC142
Manufacturer: Century
Returns & Warranties
- Product Type: DC
- HP: 1-1/2
- RPM: 1750
- Volts: 180 VDC
- Amps: 7.5
- Phase: DC
- Frame: 145TC
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Mounting: C-Face/Rigid
- Shaft Diameter: 7/8" Keyed
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Ball
- Maximum Ambient Temperature: 40° C
- Insulation Class: H
- Duty Cycle: Continuous
- DC142 is listed in Century's cross reference as a possible substitute for the following: A.O. Smith 223120, Baldor CDP3575, Baldor CDP3585, Boston Gear 665753423220G, Boston Gear 665753423223E, Boston Gear 665753423225E, Boston Gear 665753423225G, Century 223120, Dayton 4M709, Leeson 128000
- Ship Weight: 76 lbs.
