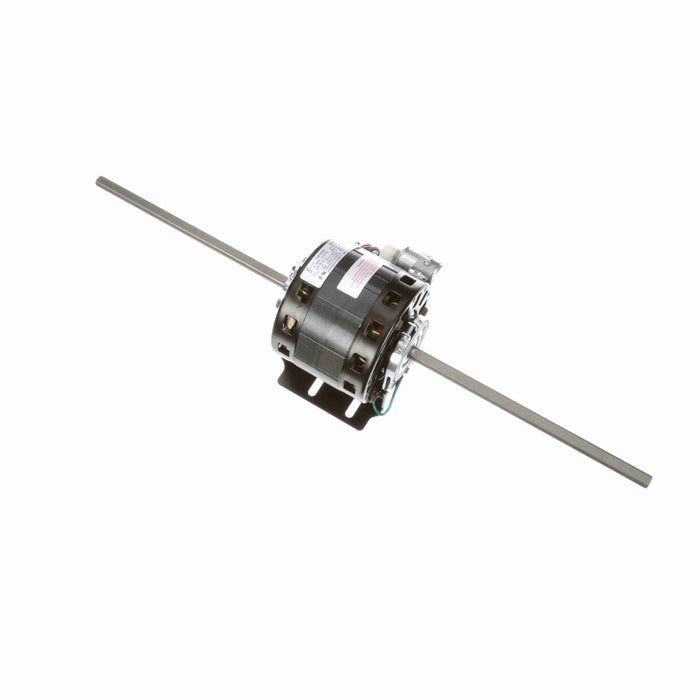

Century DB6504 5" Diameter HVAC Fan Coil and Room Air Conditioning Motor - DB6504

$210.67

Catalog#: DB6504
Manufacturer: Century

  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/6
  • RPM: 1075
  • Volts: 208-230
  • Amps: 1.4
  • Hz: 50/60
  • Phase: 1
  • Frame: 42Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Cradle
  • Motor Diameter: 5"
  • Shaft Diameter: 1/2"
  • Shaft Length: 9-3/4" x 9-3/4"
  • Rotation: Double Shafted
  • Number of Speeds: 3
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: 5MFD @ 370VAC (Included)
  • DB6504 is listed in Century's cross reference as a substitute for the following: A.O. Smith F42F32A01, Dayton 4UU25, Dayton 5M048
  • Includes Base
  • 3-1/2" Shaft Height
  • 11" Leads
  • Ship Weight: 12 lbs.
